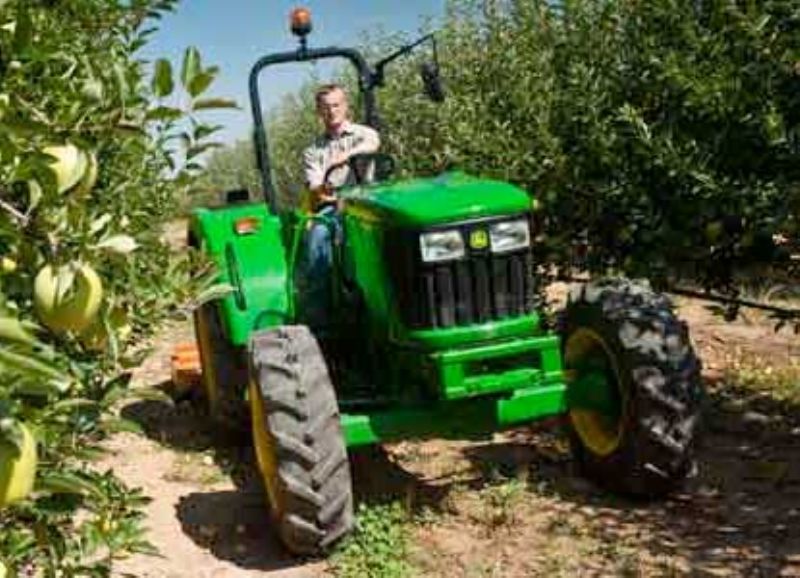

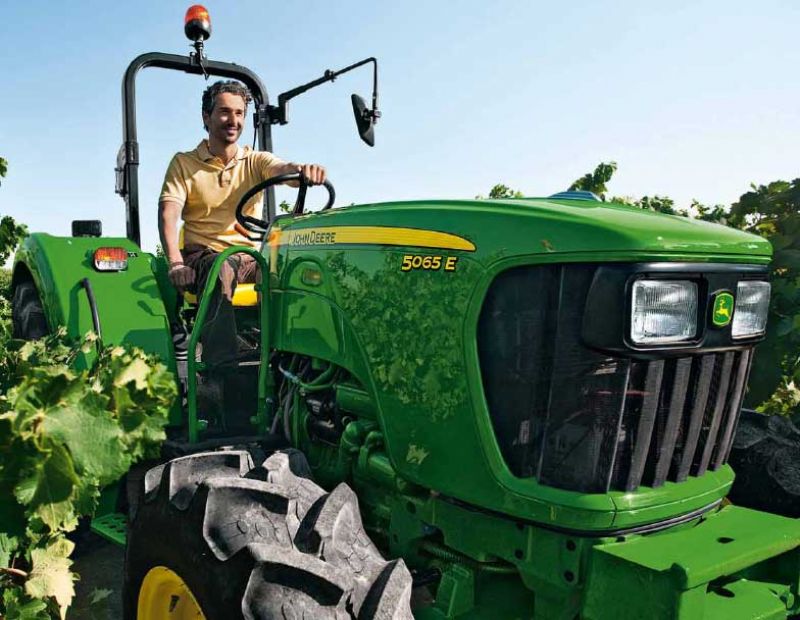

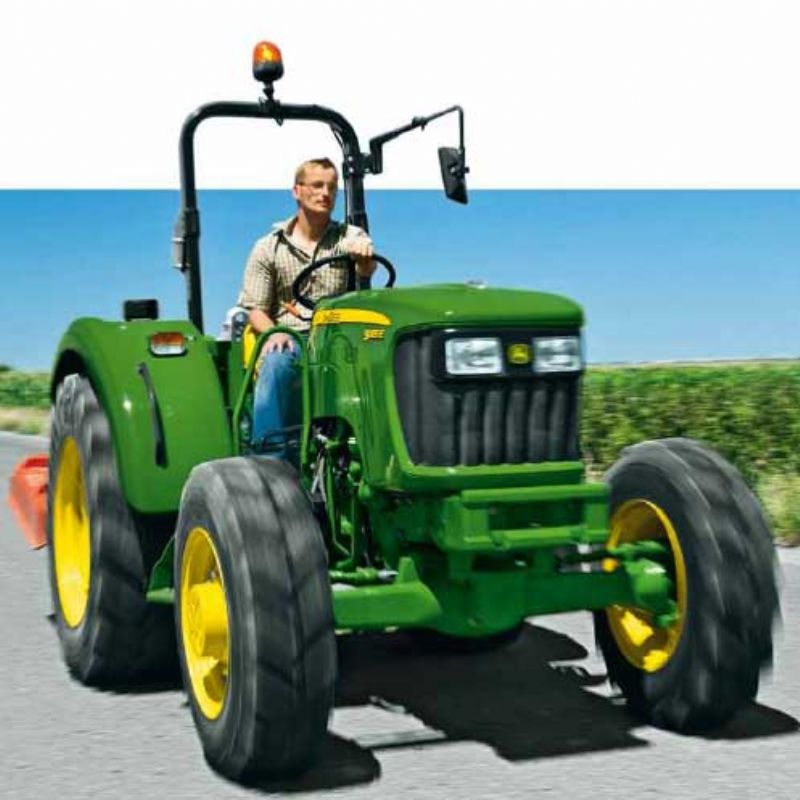

Powerful and efficient engine All 5E Series tractors are powered by the new 3 cylinder, 2.9 L PowerTech M engine, featuring a charge air cooler and fuel cooler. The integrated turbocharger is an exhaust gas driven compressor used to boost engine power by increasing the air intake volume. you get more power from each combustion — and efficiency that conforms to stage 3A emission standards. Transmissions to meet diverse demands. The 5 Series offers a solid transmission with 9 forward and 3 reverse speeds for MFWD and 2WD. All gears are synchronised for smooth shifting while the tractor is in motion. Shifting is further optimised by the dry dual clutch with cerametallic pads. Braking is performed by self-adjusting, selfequalising, hydraulically actuated oil immersed disc brakes. Robust and precise hydraulics All 5E models are equipped with a tandem hydraulic pump, delivering 71 l/min for your hydraulically operated implements and internal uses. You have the choice of up to two rear joy stick operated SCVs or 1 rear and 2 midmount joystick operated SCVs. The adjustable rate of drop enables precise control of your implement: from the lock position for transporting to varying levels of drop resistance adaptable to your load. ENGINE T = Turbo, C = Intercooler: 3/TC Displacement (cm3): 2900 Valves per cylinder: 2 Fuel tank capacity (l): 68 Biofuel capabilities: Yes JD-Additive Cooling method: Water Emissions level: Stage 3A Service intervals (hours): 250 PERFORMANCE Rated Power: (97/68 EC), kW (hp) 40.5 (55) / 48 (65) / 55 (75) Rated Power: (ECE-R24) 38.1 (52) / 46.1 (63) / 53.8 (73) Rated Speed (rpm): 2400 Max. torque (Nm): 213/247/276 Max. torque @ engine speed (rpm): 213/247/276 Nm @ 1800 rpm Torque reverse in %: 26 / 23.5 / 20 TRANSMISSION Std. transmission: 9F / 3R TSS Clutch: Dry Max. transport speed (km/h): 26.3/27.6/29 Brakes type: Hydrostatic Wet Disc Differential lock: Mechanical PTO Clutch: Yes Standard: 540 & 540E HYDRAULICS System type: Open Centre SCV control: Lever / Joystick Pump rated output steering (l/min): 25 standard (l/min): 46 Total (l/min): 71 Hydraulic pressure (bar): 135 Hitch lift capacity max. 610 behind: 1440 Hitch lift capacity max: 1800 kgs at balls Sensing type: mechanical SCV SCV rear: 1/2 SCV mid: 2 OPERATOR STATION Oos model availability (i = isolated): Yes Roll over protective structure oos: Yes Platform ? Flat/Straddl: Straddle Gearshift location: RHS ? Side Shift db(A) rating OOS: 86 dB Seat suspension system: Spring loaded Worklight rear: standard Beacon light: standard Rear wheel weights: 1 set of 100 kg standard one-piece hood: Yes DIMENSIONS & WEIGHTS 2WD availability: Yes 4WD availability: Yes 2WD Wheelbase (mm): 2050 front tread setting (mm): 1447 ? 2082 Rear tread setting (mm): 1417 ? 1821 Turning radius without brakes (m): 3.5 Min. overall width (mm): 1790 ? 1810 Ground clearance (mm) 310 / 326 / 400 Total height (mm): 2425 ? 2460 Total height with folded roll-over frame (mm): 1800 Shipping weight (kg): 2645 Max. permissible weight (kg) 4100 Tyres front: 6.0x16/7.5x16 Good Year rear: 14.9x28, 8PR, 16.9x28, 8PR 16.9x30, 8PR 4WD Wheelbase (mm): 2050 Front tread setting (mm): 1367 ? 1932 Rear tread setting (mm): 1417 ? 1821 Turning radius without brakes (m): 3.94 Min. overall width (mm): 1790 ? 1810 Ground clearance (mm): 310 / 326 / 400 Total height (mm): 2425 ? 2460 Total height with folded roll-over frame (mm): 1800 Shipping weight (kg): 2745 Max. permissible weight (kg): 4200 Tyres front: 320/70 R20 (11.2 R20) BKT 360/70 R20 (12.4 R20) BKT 380/70 R28 (13.6 R28) BKT rear: 380/70 R28 (13.6 R28) BKT 420/70 R28 (14.9 R28) BKT 420/85 R30 (16.9 R30) BKT |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
