Low-cost robotic platform may help labour-strapped farms

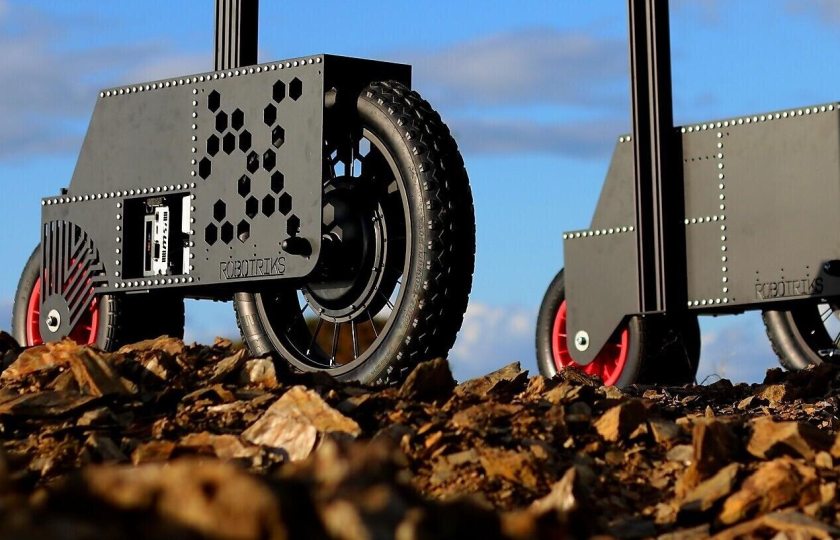

The low-cost robotic platform aims to help farmers overcome labour challenges
The low-cost robotic platform aims to help farmers overcome labour challenges

A low-cost robotic platform which can be fitted with almost any agricultural implement could help farmers overcome lack of manual labour.

The Robotriks Traction Unit (RTU), created by start-up company Robotriks, costs just £7,000 – almost a tenth of the cost of most other products on the market.

Powered by batteries which last for 24 hours, the autonomous platform can be built within a few hours and made available for tasks such as crop monitoring to harvesting.

Agricultural robots have gained in popularity as farmers increasingly turn to technologies that make their processes easier and more efficient.

“The aim is to create a system which is affordable and reliable,” said Jake Shaw-Sutton, director at Robotriks.

One of the main challenges the RTU addresses is lack of manual labour on farms: “It’s not about taking away jobs, it’s about filling jobs where there currently are no people available to do them,” he added.

“For a while there have been fewer people willing to go out into the fields and harvest fruit and vegetables; this is an autonomous solution to that.”

And there are cost savings too: “Even with the current cost of the unit, which we’re always trying to improve, it still works out cheaper than having someone employed on minimum wage - it can work for more hours, not needing lunch breaks or to sleep at night.”

Mr Shaw-Sutton and his co-founder Khaian Marsh both grew up on farms, so the RTU has been put through its paces in real life situations, including testing for soil compaction.

Jake Shaw-Sutton is the director of agri-tech firm Robotriks
Jake Shaw-Sutton is the director of agri-tech firm Robotriks

There is a small module with sensors which bolts onto the side of the RTU; when it is pushed into the soil it can measure the force needed as well as moisture, and because it is on the RTU the data is processed there and then.

The unit comprises a large drive wheel, suspension and a computer system, held together by galvanised pipe – on which farmers can attach implements.

This includes conventional items such as a tow hitch, wheelbarrow or grass cutter, but also more high-tech and new devices including soil probes, robotic harvesting arms or depth cameras for 3D crop rendering.

The component parts are all mass produced rather than specialist, which brings the costs down – for example the wheel’s brushless hub motor is from an electric bike.

Mr Shaw-Sutton said: “The unit is fully adjustable to any height and width; some farms may have narrow paths, for example in fruit and vegetables, or it might need to go wider to get over tall crops."

The RTU works either by remote control or autonomously: “We’re trying to make it as simple as possible," he added.

"We currently have three options; the first uses a remote control to drive the unit to a location, mark it as a point, drive to the next position and mark another point – then it will keep driving between those points.

“The second uses an online map, which appears on a display with the current location. The operator can click where they want to send the unit and it will go there.”

The third, which is still under development, features full autonomous control and is managed by drones.

"The positioning system on board the RTU is known as Real Time Kinematic (RTK) and allows for centimetre level precision from satellites," Mr Shaw-Sutton explained.

"It is also the same system used by DJI Drones - the camera on board then gives a bird’s eye view, and their coordinate frames can be easily matched."

The drone's vision works on multispectral colour which features visible and infrared light. For example, it may see the field as green and a patch of weeds as yellow.

It can then send a coordinate to the RTU and instruct it over to spray off the patch of weeds.

In terms of safety, there are emergency stop buttons on the unit and a remote kill switch: Mr Shaw-Sutton said: “In autonomous mode that’s where all the sensors and cameras come into play, if it gets too close to anything it will stop.”

All data is processed locally, on board the RTU, he added: "That was a decision we made after speaking with farmers; they wanted to know that only they had access to their data and it wasn’t going off to the cloud.”

The unit can carry several hundred kilos and is limited to run at up to 10mph, matching walking or running pace.

It has the ability to tow or mount just about any equipment needed – making it extremely versatile and cost effective.

“It can be used for a range of things from crop monitoring to harvesting crops like cauliflowers,” he said.

Although the RTU is still in the testing phase, it is being offered commercially to researchers.

Robotriks hopes it will have enough functionality to offer to a wider market over the next year.
